Maico Abdeckung ER für ER EC System Feuchte-/Bewegungssensor
Maico Covers ER A, ER AB, ER AH and ER AK - Perfect Finish and Intuitive Control
Optimal air quality and comfort with Maico covers ER A, ER AB, ER AH and ER AK - for a pleasant room climate.
The high-quality covers ER A, ER AB, ER AH and ER AK from Maico provide the perfect finish and the central operating and control unit for your ER EC single room ventilation system. These covers are not only easy to install and adjust but also ready for immediate use. They are pre-programmed ex works for basic load operation with 30 m³/h, with an optional (light) switch enabling the switch to full load operation with 60 m³/h. Special models such as ER AB and ER AH offer barrier-free use thanks to integrated motion or humidity sensors.
Your advantages at a glance:
- Child's play installation: Installation is effortless and tool-free, saving time and effort.
- Integrated filter change indicator: A practical indicator, either as a time strip or LED, reliably reminds you of the necessary air filter change.
- Rotatable for alignment: The covers can be rotated by ± 5° to easily compensate for minor deviations during housing installation.
- Elegant design: They impress with an attractive exterior and are made from high-quality materials that guarantee durability.
- Barrier-free operation: Models ER AB and ER AH enable comfortable and independent operation without manual intervention thanks to intelligent sensor technology.
Intelligent filter change indicator
The Maico covers are equipped with a clever filter change indicator. Model ER A uses a time strip to signal the need for replacement, while ER AB, AH, and AK use a flashing LED.
This function ensures optimal air quality at all times and reliably reminds you of maintenance to maintain the efficiency of your ventilation system.
Flexible operating parameter configuration
For covers ER AB, AH, and AK, touch controls allow individual adjustment of important parameters such as switch-on delay, airflow rate, interval time, and run-on time.
These customization options offer you maximum control and flexibility to perfectly adapt the ventilation behavior to your needs and room usage.
Automated humidity control (ER AH)
The ER AH model continuously monitors the room's humidity and automatically adjusts the fan speed. When humidity rises, the device steplessly increases its speed; when the reference value is undershot, the run-on mode begins.
This ensures a consistently pleasant room climate and effectively prevents mold formation by efficiently removing excess moisture.
Motion detector function (ER AB)
The ER AB cover automatically activates the ER EC unit to full load when motion is detected and switches off again after a preset run-on time when no further motion is registered.
This intelligent function ensures demand-controlled ventilation in frequently used areas such as bathrooms or hallways and contributes to energy efficiency.
Technical Specifications
| Parameter | Value | Note |
|---|---|---|
| Version | Standard (ER A), Motion detector (ER AB), Humidity control (ER AH), Comfort (ER AK) | Adapted to individual requirements |
| Airflow direction | Exhaust air | Efficient removal of stale air |
| Installation location | Wall / Ceiling | Flexible installation options |
| System type | Decentralized | Suitable for single-room ventilation |
| Housing material | Plastic | Durable and easy to clean |
| Color | Traffic white, similar to RAL 9016 | Harmonious integration into any room |
| Filter class | ISO Coarse 30 % (G2) | For basic air filtration |
| Conveyed medium temperature at IMax | 40 °C | Maximum operating temperature of the conveyed medium |
| Protection type | IP X5 | Protection against water jets |
| Weight | 0.6 kg | Lightweight and easy to handle |
| Airflow rate (ER A) | 30 m³/h (Stage 1) / 60 m³/h (Stage 2) | Standard settings for basic and full load operation |
| Airflow rate (ER AB, ER AK) | 20 / 30 / 40 / 60 / 100 m³/h | Factory setting: Stage 1: 30 m³/h, Stage 2: 60 m³/h; individually adjustable |
| Airflow rate (ER AH) | Stage 1: 20 / 30 / 40 m³/h, Stage 2: 60 / 100 m³/h | Individually adjustable for optimal humidity regulation |
| Sound pressure level (ER A) | 15 / 35 dB(A) (with ER GH); 31 / 41 dB(A) (with ER GH AP / APB) | According to DIN 18017-3 at AL = 10 m² |
| Sound pressure level (ER AB, AH, AK) | 15 / 16 / 23 / 35 / 48 dB(A) (with ER GH); 27 / 31 / 35 / 41 / 51 dB(A) (with ER GH AP / APB) | According to DIN 18017-3 at AL = 10 m² |
| Dimension | Measurement | Note |
|---|---|---|
| Width | 281 mm | Compact design for discreet installation |
| Height | 281 mm | Standard dimension for easy integration |
| Depth | 33 mm | Flat design for minimal space requirement |
Application areas & Use cases
The Maico covers are versatile and ideal for demand-controlled single-room ventilation in private and commercial environments.
Use the covers in the bathroom and kitchen to efficiently remove moisture and odors, or in the living and dining room, as well as in other living areas, to ensure a fresh and healthy indoor climate at all times.
Manufacturer & Quality
Maico stands for the highest quality standards in ventilation technology. The covers ER A, ER AB, ER AH, and ER AK are made from durable and high-quality materials that ensure a long service life and reliable function. They are virtually maintenance-free and allow for easy cleaning and uncomplicated filter changes to maintain the system's performance permanently.
Invest in the future-oriented Maico covers for your ER EC single room ventilation system and experience the difference in comfort and air quality!
We are available at any time for individual advice or further information on our ventilation solutions.
Ignorer la galerie de produits

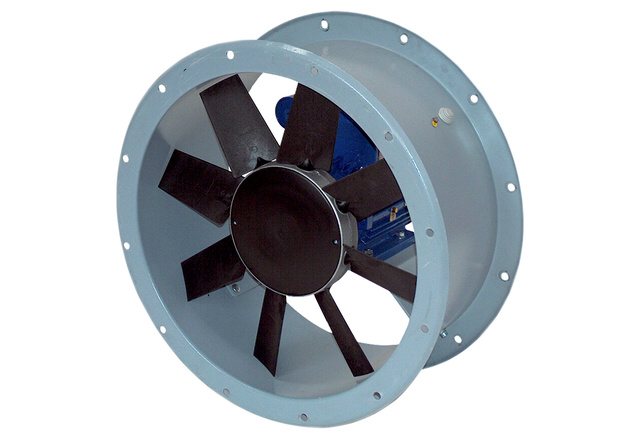

Maico Axial-Rohrventilator DAR 160/6 22 – 142.920 m³/h – DN 1600 – 22 kW – 400 V – Industrie – Drehzahlregelbar – 0073.0197
Maico Axial-Rohrventilator DAR 160/6 15 – 119520 m³/h – DN 1600 mm – 15 kW – 400 V – IP55 – drehzahlsteuerbar – Industrie – 0073.0196
Maico Radial-Dachventilator DRD V 80/6 Ex – 22664 m³/h – 400V – DN 800 – ATEX Ex II 2 G – vertikal – 0073.0554

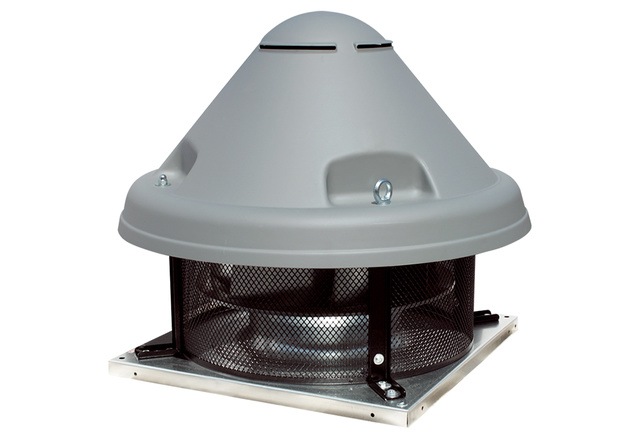

Maico Radial-Dachventilator DRD H 90/6 Ex – 29986 m³/h – 5,5 kW – ATEX Ex-Zone 1&2 – 400 V – horizontal – 0073.0544
Maico Radial-Dachventilator DRD H 80/6 Ex – 22664 m³/h – 400 V Drehstrom – 3 kW – ATEX Ex II 2 G für Zone 1 & 2 – horizontal – 0073.0543
Maico Axial-Rohrventilator DAR 160/8 11 – 114120 m³/h – DN 1600 – 11 kW – 400 V – Industrie – Drehzahlsteuerbar – IP55 – 0073.0199
Maico Axial-Rohrventilator DAR 140/6 15 – 104040 m³/h – DN 1400 mm – 15 kW – 400 V – IE3 Motor – IP 55 – Drehzahlsteuerbar – 0073.0193
Maico Axial-Rohrventilator DAR 160/8 7,5 – 93240 m³/h – DN 1600 – 7,5 kW – 400 V – Rohreinbau – Drehzahlsteuerbar – 0073.0198

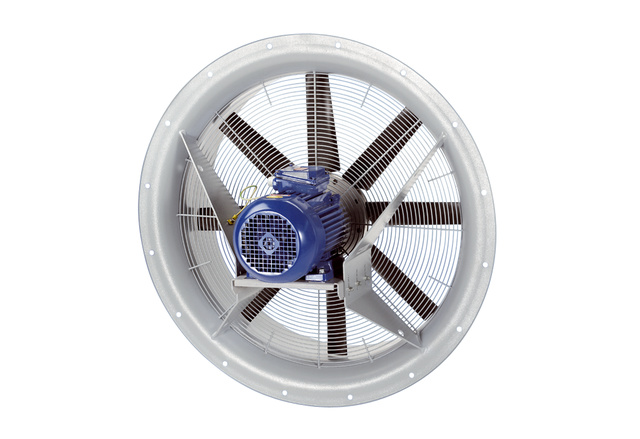

Maico Axial-Ventilator DAS 125/6 – 72.000 m³/h – DN1250 – 400V – 7497W – IP55 – drehzahlsteuerbar – Industrie – 0083.0866
